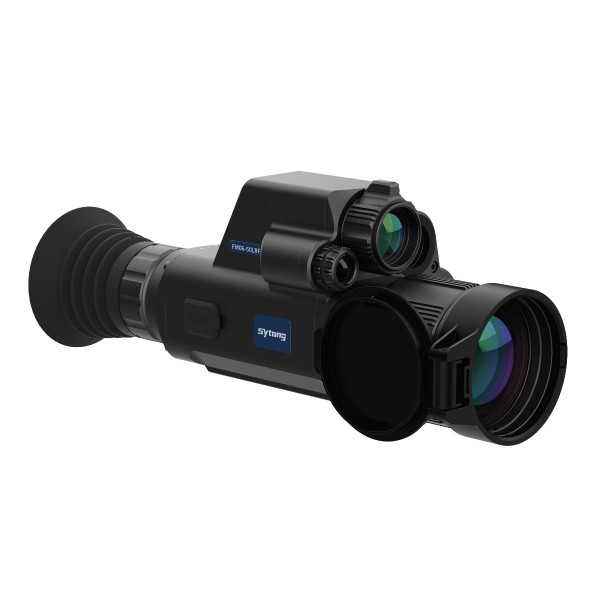

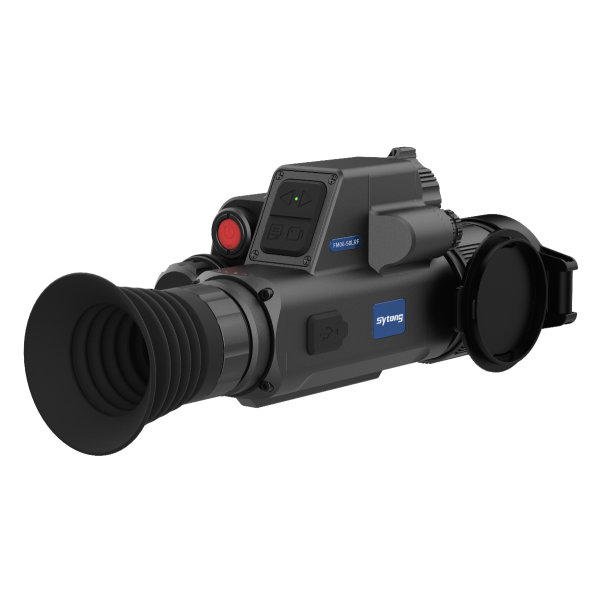

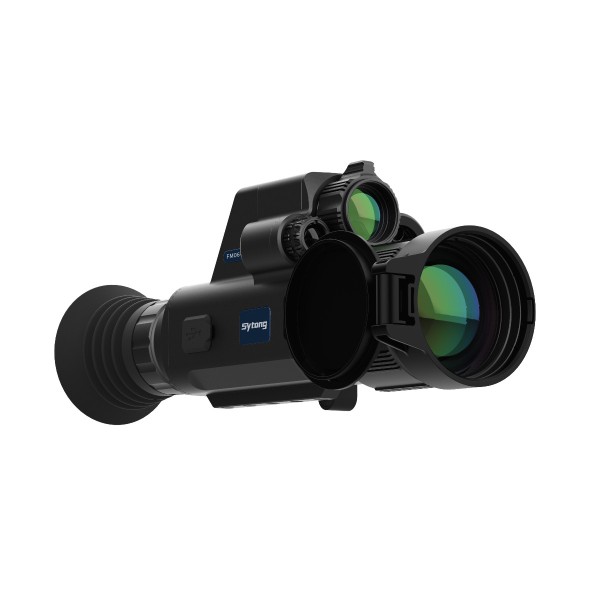

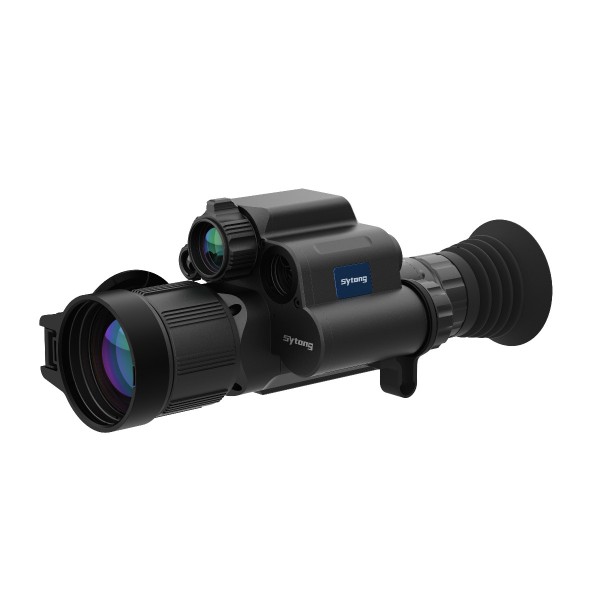

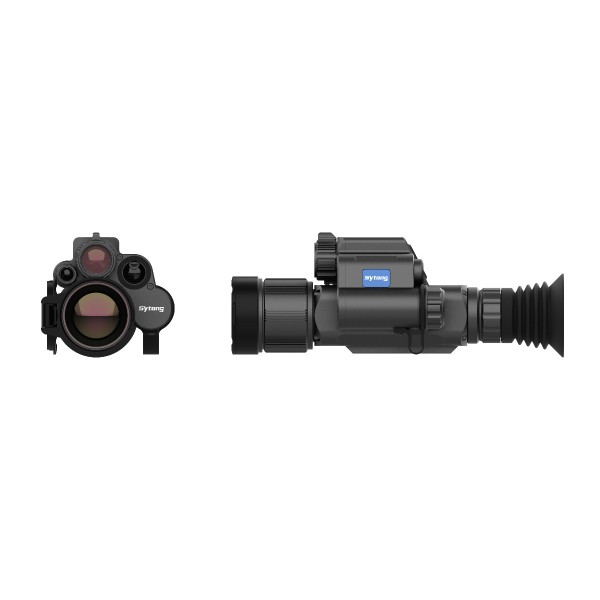

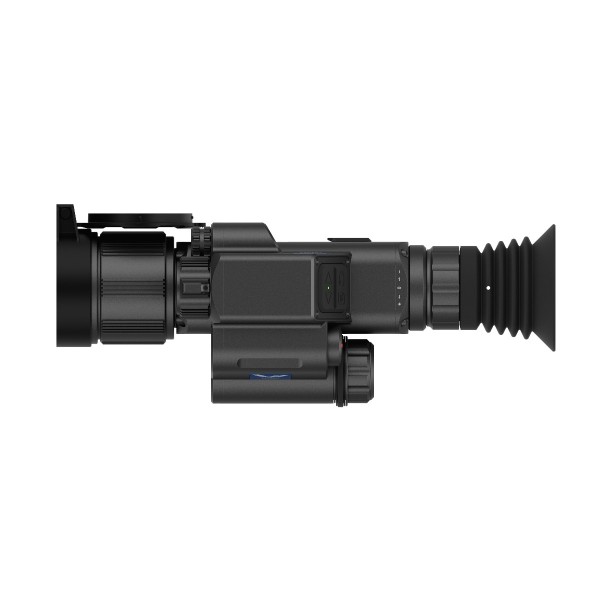

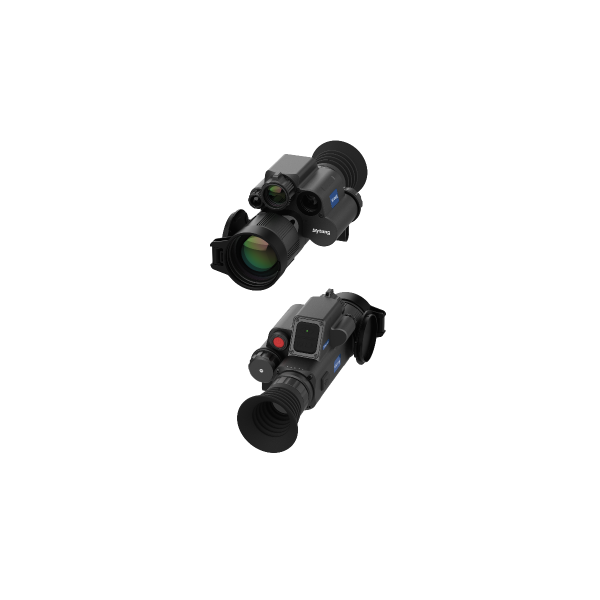

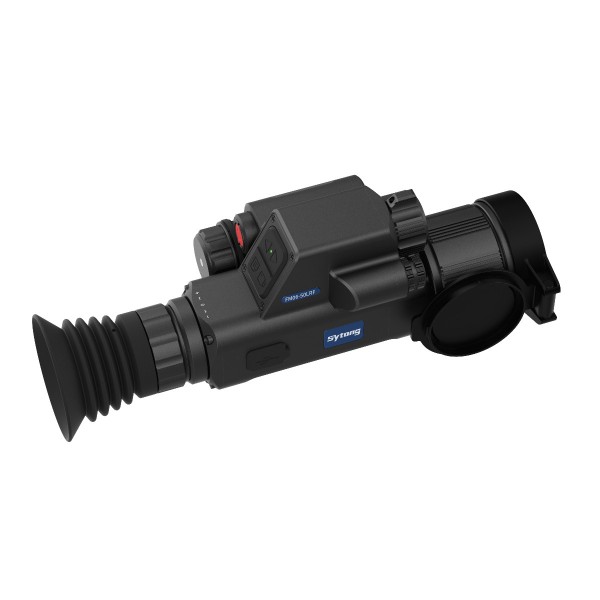

Falcon Titan T1 650L/Sytong FM06-50LRF – High Definition Thermal Monocular with Integrated Rangefinder

Falcon Titan T1 650L/Sytong FM06-50LRF – Multispectral sight 50 mm with integrated laser rangefinder and ballistic calculator

Falcon announces the acquisition of Sytong, now integrated into its group, and the name change of Sytong to Falcon for the entire product range.

On order 15 days

TheSytong FM06-50LRFIs a multispectral sight designed for long-distance use (hunting, security, professional use). It combines a sensorthermal 640×512High sensitivity and aday/night digital vision 1920×1080, with along-range laser rangefinderAnd aballistic calculatorEmbedded to improve accuracy and the experience of shooting at distant targets.

• Thermal sensor 640×512 px (12 µm), NETD < 18 mK, 50 Hz — resolution and sensitivity optimized for thermal detection
• Thermal lens 50 mm f/1.0, optical magnification 2.8× (magnification)
• Digital thermal zoom: 1× / 2× / 4× / 8×
• Day/night digital channel: CMOS 1920×1080, 50 mm lens (3× zoom) — enhances image in low-light conditions
• Laser rangefinder ≈ 1000 to 1200 m (±1 m) — precise range measurement independent of detection range
• Ballistic calculator: up to 5 configurable ammunition profiles for quick point adjustment
• AMOLED screen 1024×768, internal photo/video recording, built-in memory (photo / .mp4)
• 2.4 GHz Wi-Fi connectivity for image transfer and remote control
• IP66 waterproofing and shock resistance up to 10,000 J — robust construction for tough conditions
• Temperature range: -20°C to +50°C
• Power supply: removable 18650 battery, indicative battery life ≈ 5 hours (variable depending on usage)

Detection distance

Typical detection up to≈ 2,500 m, with measures that can reach≈ 2,635 mAccording to the Johnson method. The "Johnson method" is based on standardized criteria (detection, recognition, identification) applied to a heated target under precise test conditions; these figures represent typical detection and can vary greatly depending on the target, ambient temperature, humidity, and visibility.

To optimize the detection range: mount and properly align the scope, use a clean and stable lens, check the sensor's temperature after startup, and favor calm conditions (little wind, light rain). Note that the measured range differs from the range of the rangefinder (distance measurement).

Key features

• Thermal/digital superposition (multispectral mode)— combine thermal imaging and daytime imaging for better detection and identification in low-light or smoky conditions; useful, for example, to spot a camouflaged target at night.
• Automatic correction of the aiming point via rangefinder + ballistic calculator— The laser rangefinder measures the distance, and the ballistic calculator adjusts the aiming point according to the selected ammunition profile, improving accuracy at long range.
• PiP mode (picture-in-picture)— displays a zoomed thermal view in an inset while maintaining the overall view, useful for quickly acquiring a target without losing context.
• 10 reticle styles— Quick selection of reticles suitable for the type of shooting and user preferences, with the possibility to adjust the point and scale of the reticle for better accuracy.
• Photo and video recording (.mp4)— image and video capture for field analysis, debriefing, or operational proof; compatible .mp4 format, transfer via Wi-Fi or internal memory for review on PC.

Ergonomics and Usage: The scope's interface is designed for quick adjustment of profiles (up to 5 ammunitions) and environmental parameters (temperature, pressure) to optimize performance at night or in darkness. To see the system in action, watch the demo video or download the technical sheet.

Contents of the box

• Sytong FM06-50LRF Scope
• Weaver/Picatinny mount with screws (compatible with standard rails)
• Li-ion 18650 battery (recommended replacement battery for long outings)
• USB-C cable
• Carrying case/cover
• User manual

Detailed specifications

Practical notes: The usable memory capacity may vary depending on the video format and bitrate; for prolonged storage of high-resolution .mp4 videos, consider an external card/memory if applicable. The effective performance (detection range, resolution, image quality) will depend on conditions (temperature, humidity, darkness) and the type of target. For pricing and availability on the market, check the product sheet or contact the distributor (sytong am06-50 lrf / sytong am06-50lrf / sytong am06-50 for similar references).

Installation recommendations

Installation by a professional is recommended to ensure safety and precision. Here is a quick checklist:

• Preparation: check that the weapon is unloaded and stable before any operation.
• Alignment: position the rifle scope on the Weaver/Picatinny rail, ensuring the correct eye relief and recoil position.
• Tightening: maximum recommended tightening torque:2 Nm— Check the value on your specific setup and use a torque wrench for even tightening.
• Post-assembly verification: perform zeroing on target, test the laser rangefinder to confirm the range measurement, and conduct a few test shots to validate the ballistic compensation.

Maintenance and precautions: Store 18650 batteries safely, charge them before use, and update the firmware if necessary — features may vary according to firmware and batch. Actual performance (detection, range, image quality) will depend on conditions (temperature, humidity, darkness) and the type of weapon; the construction is designed to withstand common recoil but check compatibility with your setup.

Comply with local regulations applicable to optical devices and weapons. For assistance with assembly, pricing, or availability on the market (references sytong am06-50 / am06-50 lrf), contact the distributor or customer service.
