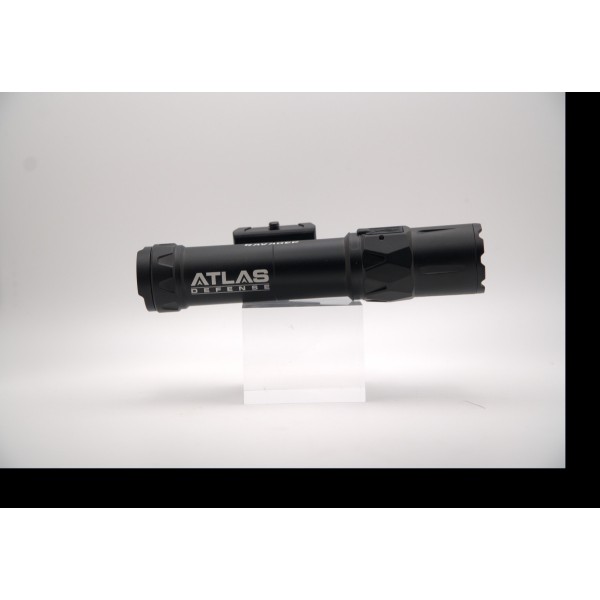

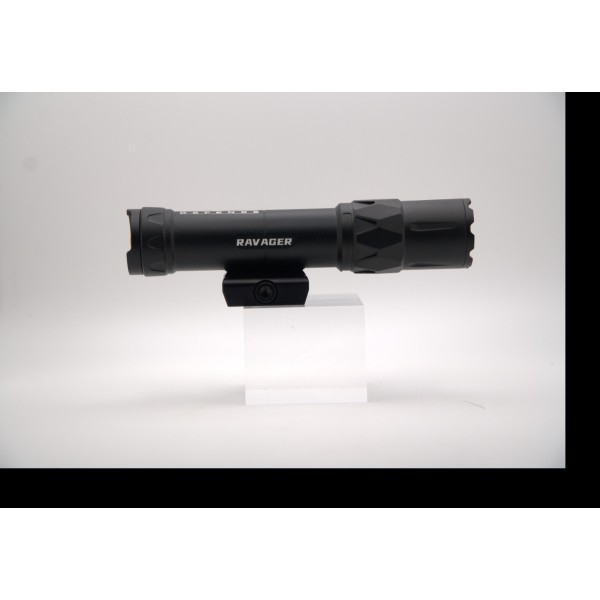

Ravager – Professional High-Intensity Tactical Flashlight (without laser)

The Ravager is the high-intensity stand-alone flashlight version from the Atlas Defense range.
It emphasizes pure power, mechanical simplicity, and robustness, without a laser module, for users who want:

✔ maximum range
✔ smoke/dust/vegetation penetration
✔ highly concentrated hotspot
✔ high autonomy
✔ absolute reliability under recoil

Its 17° “throw” optics produce a tight beam that concentrates the luminous energy at the center, generating nearly 55,000 measured candelas, which is almost double that of a standard tactical flashlight.

Result:
 clear identification up to 250 real meters
 ANSI photometric range ~470 m
 very low stray halo (less close-range glare)

The body is machined from hard-anodized aeronautical aluminum alloy, designed to withstand:

• field shocks

• vibrations

• recoil from long guns (.223 / 7.62 / 12GA)

• harsh weather conditions

 Measured Light Performance (real field tests)

Validated Measurements

 Nominal intensity retained: ≈ 55,000 cd

Range

• ANSI FL1 Range: ≈ 470 m

• Realistic operational range: 220–280 m

Beam

• Angle: 17°

• Tight long-distance hotspot

• Moderate peripheral spill

 Technical Specifications

Lighting

• Intensity: ≈ 55,000 candelas

• Estimated real luminous flux: 1600–1800 lumens

• Color temperature: ~6000K (cool white)

• Optics: long-range / throw

Energy

• Battery: Li-ion 21700 – 5000 mAh

• Recharge: Magnetic USB 5V

• Full power autonomy: 1h30 – 2h

• Low battery indicator

Construction

• CNC aeronautical aluminum

• Hard anti-abrasion anodization

• Water resistance: IPX6 (heavy rain/splashes)

• Recoil resistance for long guns

• Length: ~145 mm

• Head diameter: ~40–42 mm

• Weight with battery: ~280–300 g

 Ergonomics & Controls

• Rear button momentary/constant

• Included silent pressure remote switch

• Lockable waterproof connector

• Quick activation under stress

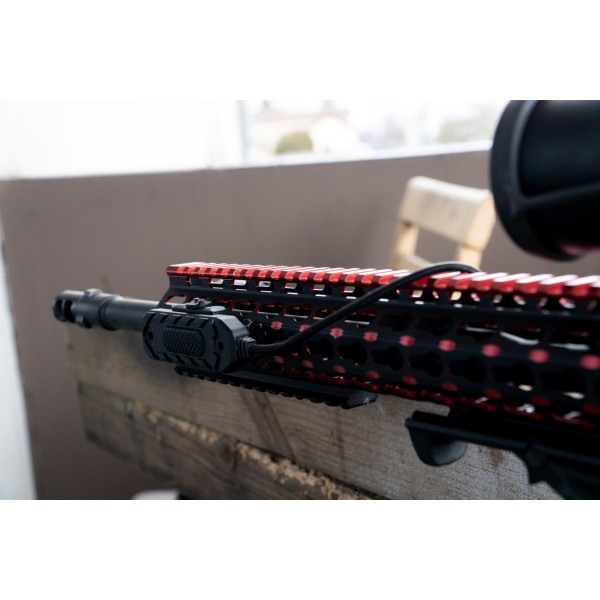

 Installation & Compatibility

✔ Picatinny 1913 rail included
✔ M-Lok adapters provided
✔ Quick and secure mounting

Compatible with:

• AR15 / M4 / AK

• PCC / tactical carbines

• pump-action / semi-auto shotguns

• professional platforms

 Operational Maintenance

• Regularly clean the lens (powder residue = power loss)

• Do not cover the head (normal heating)

• Check mount tightness after firing

• Remove the battery for long-term storage

• Do not immerse (IPX6 ≠ submersible)

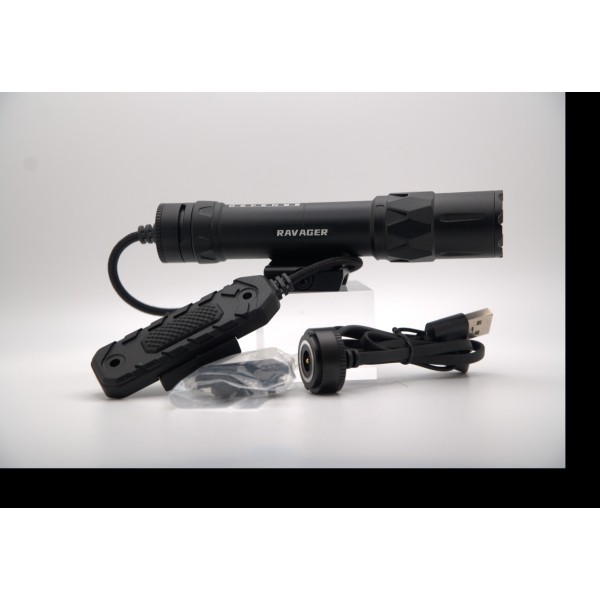

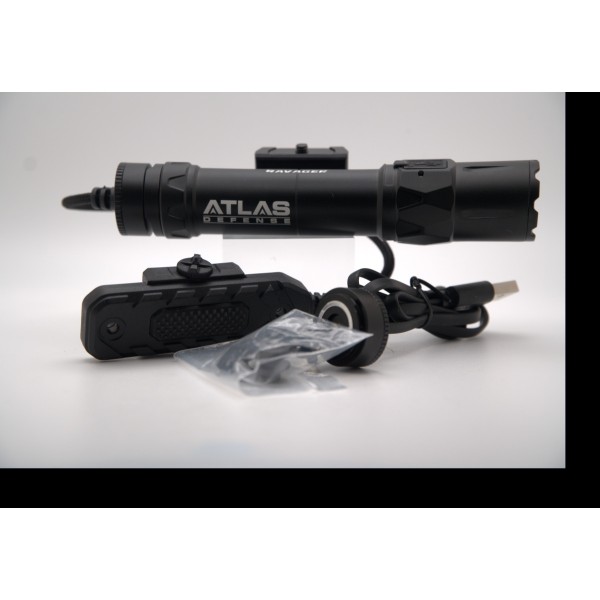

 Pack Contents

• Ravager flashlight

• 21700 – 5000 mAh battery

• Magnetic USB cable

• Tactical remote switch

• Picatinny mount

• M-Lok adapters

• Screws / keys

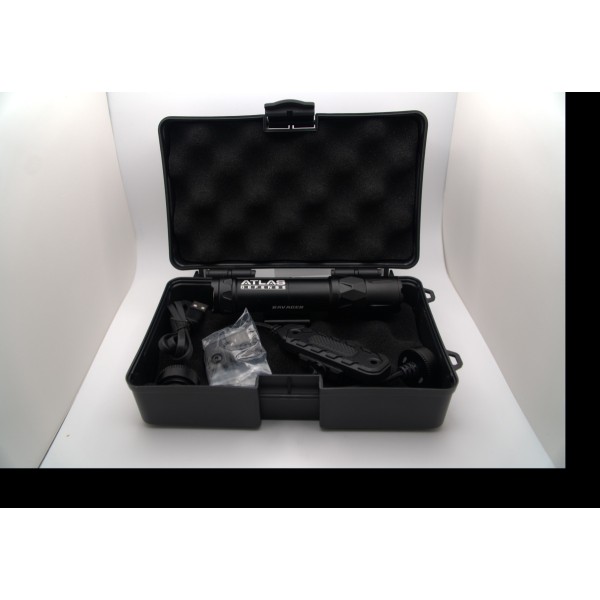

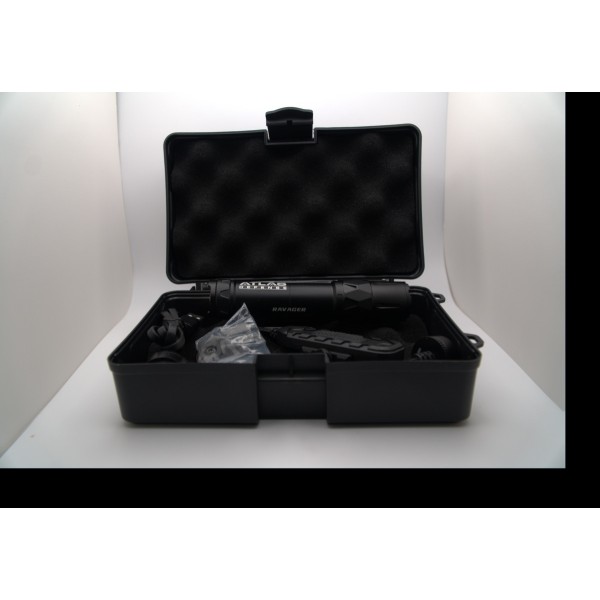

• Protective foam hard case
