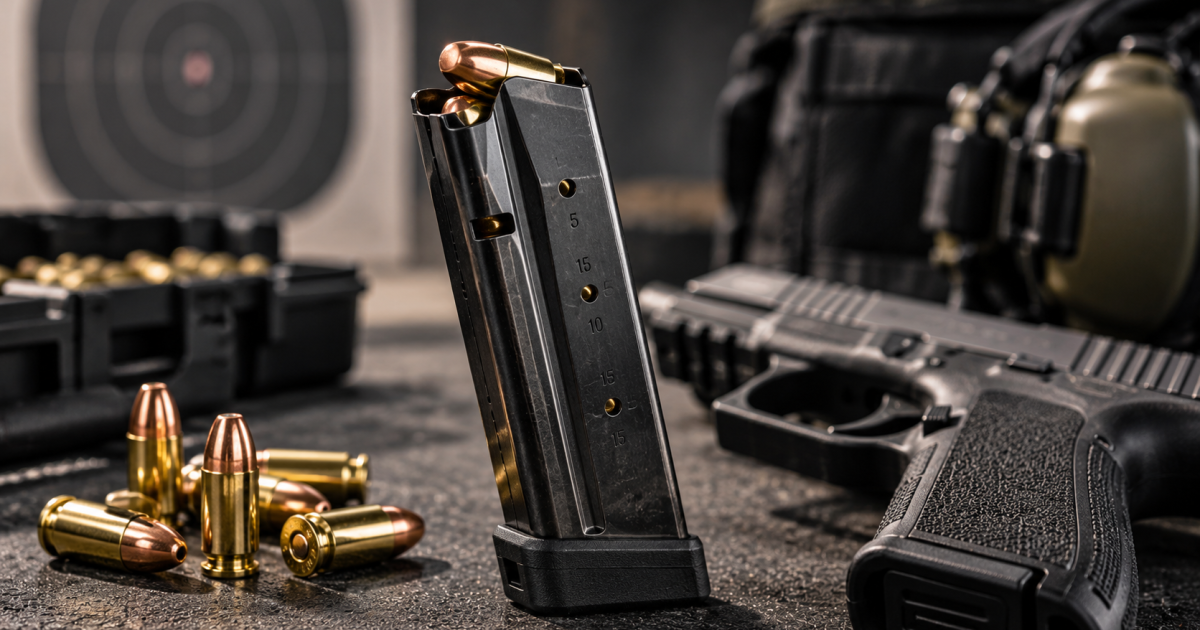

When a semi-automatic pistol encounters a feeding problem, attention almost immediately turns to the gun itself. The slide, recoil spring, chamber, or ammunition are usually the first suspects. However, a much simpler-looking part can have a decisive influence on the entire cycle: the charger. It is removable, relatively light, and seems almost secondary compared to the bolt mechanism or the barrel locking. Yet, before a cartridge can be chambered, it must first be properly stored, held, positioned, and presented. All these functions are carried out by the magazine. A perfectly designed pistol can therefore experience malfunctions simply because the cartridge does not arrive in front of the bolt under the expected conditions. This is what sometimes makes the diagnosis misleading. The symptom appears in the weapon. However, the cause may be found just a few centimeters below. To truly understand this phenomenon, one must stop considering the magazine as a simple box containing cartridges. It actually constitutes... the first element of the power supply system.
The charger is not only used to store cartridges.
Its mission seems obvious: to hold several cartridges and make them available successively. But mechanically, it accomplishes much more. With each cycle, the magazine must present a new cartridge:
- At the right height ;
- according to a sufficiently coherent orientation ;
- at the right time.
The bolt moves backward after firing, then returns forward. During this movement, it must encounter the next cartridge and push it into the chamber. Therefore, the magazine must have repositioned this cartridge before the bolt arrives. A fraction of a second difference or incorrect presentation can disrupt the entire sequence.
A charger is itself a small mechanism.
Externally, it appears extremely simple. However, it contains several elements whose functions are complementary:
- body ;
- lips ;
- Elevator ;
- spring ;
- sole.
The body guides the whole assembly. The spring provides the necessary energy to push the cartridges back up. The elevator transmits this thrust. The lips control the upper position of the cartridge and determine the moment it can be released. The sole closes the assembly and sometimes helps retain the spring depending on the design. A single deformed, dirty, or damaged component can therefore alter the overall behavior.
The lips play a much more important role than it seems.
Two small metal or polymer parts located at the top of the magazine directly control the top cartridge. They prevent it from coming out prematurely while allowing it to be engaged by the bolt when the cycle requires it. Their geometry thus influences:
- presentation height ;
- lateral support ;
- initial orientation.
This is why a charger that appears externally intact can still behave differently from another. An extremely small difference in this area is sometimes enough to change the way the cartridge reaches the chamber.
The cartridge does not simply leave the magazine vertically.
When the bolt moves forward, it comes into contact with the rear of the upper cartridge. The cartridge then begins to move forward. It remains guided by the magazine for a certain time before gradually freeing itself. It must then continue its movement toward the chamber. The path is therefore a transition between several zones: charger → ramp or feed geometry → chamber. For this transition to be smooth, each component must work with the others. The charger cannot therefore be analyzed independently of the weapon.
The presentation angle is crucial.
A cartridge arriving too low, too high, or slightly different from the expected geometry can encounter the chamber or surrounding surfaces in an unusual way. The visible result may be a partial stoppage of the cycle. To the shooter, this immediately appears to be a "chamber" or "feed ramp" problem. However, the starting point may be the way the magazine presented the ammunition. This is what makes feeding incidents particularly interesting mechanically: The final symptom does not always reveal the true origin of the problem..
The elevator holds the stack of cartridges.
Under the ammunition is the elevator. It receives the pressure from the spring and transmits it to the stack. Its shape also helps to hold the cartridges according to the design specified by the manufacturer. When the magazine is full, the elevator is positioned very low. As the cartridges are used up, it rises. It must maintain a consistent orientation throughout this movement. An irregular movement of the elevator can therefore alter the presentation of the last cartridges compared to the first ones.
Why do some weapons work perfectly with one magazine and less well with another ?
Because two seemingly identical magazines may have experienced different histories. One is new. The other has undergone hundreds or thousands of cycles. A third has been dropped several times. A fourth contains more residue. The differences may be minimal visually, but sufficient to affect reliability. That is why, when the same pistol works perfectly with several magazines but regularly encounters issues with only one, this information has great diagnostic value. It allows for an immediate reduction in the number of possible hypotheses without intervening on the firearm.
The magazine spring works with each cycle.
The spring must push the stack of cartridges upwards. Its function is not simply to create strong pressure. Above all, it must provide an appropriate push throughout the entire travel of the elevator. The next cartridge must be properly presented before the bolt returns. Therefore, the operation is a matter of synchronization. If the presentation becomes irregular, the problem may only appear under certain conditions. For example, a magazine may work correctly with several cartridges but then exhibit an anomaly when the stack is almost at the top. This difference naturally directs the analysis towards the internal components of the magazine.
More strength is not automatically better
As with many springs found in a weapon, it would be incorrect to think that a stronger force automatically ensures better performance. The system was designed around values defined by the manufacturer. The spring must work with:
- Elevator ;
- cartridges ;
- lip geometry ;
- cycle speed.
Arbitrarily altering this balance can shift the problem rather than solve it. Understanding the role of the spring is useful. Trying to "strengthen" it without a serious diagnosis is much less so.
The body of the charger must guide without blocking.
The body ensures the overall alignment of the components. It must be sufficiently rigid to maintain its geometry, while allowing the elevator and the cartridges to move freely. Even a slight deformation can create a friction point. The elevator may then slow down or exhibit localized resistance. The magazine may function normally under certain conditions but become irregular under others. This type of problem can be difficult to identify because no part is necessarily broken. The mechanics have simply become less smooth.
Falls can have more consequences than one might imagine.
In certain sports disciplines, magazines are handled very regularly and can fall to the ground. They are specifically designed as replaceable and manageable components. However, this does not mean they are indestructible. A fall can affect:
- sole ;
- body ;
- lips.
The consequence will not necessarily be immediate. The charger can continue to operate for some time while having lost part of its consistency. A visual inspection and monitoring of its behavior therefore become particularly important for users who use their equipment intensively.
The sole also has a mechanical function.
It often seems to be just a simple plug placed under the charger. However, it closes the body and holds the internal components according to the chosen design. If it is damaged or improperly positioned, the whole assembly can lose its integrity. On some sports chargers, the base also has a shape that allows easier handling or better protection. But whatever its shape, it remains a functional part of the system.
Why do incidents sometimes occur only when the charger is fully charged ?
Because the mechanical conditions are not the same depending on the number of cartridges. When the magazine is full, the spring is more compressed and the pressure exerted on the top cartridge is different. The stack also contains more contact surfaces between the cartridges. The whole assembly is therefore subjected to a particular configuration. As the cartridges are used up, this configuration changes. A problem appearing only on the first cartridges is therefore valuable information. Conversely, an incident occurring only on the last cartridges can direct the observation towards other elements of the magazine.
The number of cartridges constantly changes the conditions.
A magazine is never exactly in the same condition between its first and last round. The position of the follower changes. The spring gradually relaxes. The mass of the stack decreases. The contacts between cartridges evolve. Nevertheless, the system must continue to present each round in a sufficiently consistent manner. It is precisely this ability to maintain consistent behavior despite changing internal geometry that defines the quality of a good magazine.
The last cartridges are particularly interesting to observe.
When several incidents systematically occur near the end of a magazine, the pattern can be more informative than an isolated incident. The elevator is then close to its upper position. The spring operates in a different part of its travel. The relationship between the lips and the top cartridge is also slightly different. This repetition sometimes makes it possible to distinguish an anomaly related to the magazine from a more general problem with the weapon.
A single isolated incident is not enough to condemn a shipper.
A single malfunction can stem from multiple factors. Ammunition, handling, the general condition of the weapon, or particular circumstances can all play a role. Repetition is much more significant. If one magazine consistently causes the same issue while others function correctly under the same conditions, the correlation becomes strong. Therefore, the mechanical diagnosis relies more on comparison and repeatability that only on an immediate reaction after a single problem.
Identifying your chargers can be very useful.
In intensive sports practice, knowing which magazine was used when an incident occurs greatly facilitates the analysis. It is not about changing anything. It is simply about preserving information. If several incidents always occur with the same magazine, you already have an important clue. Without identification, all magazines appear identical and the information is lost. The shooter may then believe that their weapon is functioning randomly, whereas a single element is causing the majority of the problems.
Comparative diagnosis is extremely powerful.
Imagine a weapon used with five magazines. Four work perfectly. The fifth regularly causes irregular feeding. Even before disassembling anything, a reasonable conclusion appears: the fifth magazine deserves particular inspection. Conversely, if all five exhibit exactly the same issue, it becomes less logical to immediately blame each magazine. The investigation must then broaden to:
- weapon ;
- ammunition ;
- terms of use.
This method avoids many hasty conclusions.
The ammunition and the magazine also form a pair.
All cartridges of the same caliber adhere to standardized dimensions, but their projectiles can have different shapes and lengths within the specified limits. This geometry influences how they are stacked and presented. A firearm and its magazine are designed to operate within certain ranges. This explains why performance must always be observed with appropriate ammunition that complies with the manufacturer's recommendations. A difference in performance between two types of ammunition does not automatically mean the magazine is at fault, but it provides additional information.
Double-column chargers add an interesting transition.
On many modern pistols, cartridges are stored in two partially staggered columns to increase capacity without excessively lengthening the magazine. Near the lips, the stack must then be properly presented to allow the capture of the top cartridge. This design works remarkably well when properly engineered. However, it illustrates how the magazine is not simply a tube filled with ammunition. The internal geometry constantly organizes the cartridges.
The magazines of the 1911 and those of modern platforms illustrate different philosophies.
A traditional 1911 magazine is narrow and operates according to a design directly linked to the original platform. Modern high-capacity pistols generally use different designs. The 2011-type platforms represent yet another evolution by combining certain principles from the 1911 with a higher-capacity feeding system. In each case, the magazine is an integral part of the overall design. It would therefore be incorrect to compare capacities alone without considering the complete mechanical architecture.
Why do the 2011 platforms place so much importance on chargers ?
Because these pistols are often used in sporting environments where reliability, capacity, and speed of use are highly demanded. The double-stack magazine must present the cartridges in an extremely consistent manner while fitting into a particular design. This explains why experienced competitors closely monitor the condition of their magazines. But this logic is not unique to the 2011. On any semi-automatic pistol, An irregular charger can turn a reliable weapon into an apparently erratic one..
Clogging can disrupt the internal movement.
The magazine is open at its top part. Dust, debris, or particles can therefore enter it. In certain disciplines where magazines fall to the ground, this phenomenon becomes even more evident. The purpose of maintenance is not to make the interior chemically perfect. It is to ensure free movement of the components in accordance with the manufacturer's recommendations. A significant accumulation can increase friction between the follower, cartridges, and the magazine body.
Too much lubrication is not necessarily a solution.
The reflex when faced with a sliding mechanical part is sometimes to add lubricant. In a charger, this approach must be handled with caution. A liquid product can trap more dust or particles depending on the conditions. Therefore, the manufacturer's recommendations should remain the reference. Mechanical maintenance does not mean systematically applying more product. It means preserving the intended operation.
Why must the elevator remain free ?
Because it must be able to react quickly to each cartridge removed. When the bolt captures the top cartridge, the elevator and the spring must immediately reposition the next one. Excessive friction slows down this movement. The problem can then be particularly noticeable when the bolt cycles quickly. Once again, feeding is as much a matter of timing as it is of geometry.
The bolt speed and the magazine speed must be compatible.
The charger does not operate on its own. The bolt has its own cycle. After recoiling, it moves forward again. The charger must have presented the next cartridge before it arrives. The manufacturer therefore designs the system as a whole. Reliable operation depends on the balance between:
- bolt movement ;
- return spring ;
- magazine spring ;
- mass and position of the cartridges.
That is why trying to modify a single component without understanding the others can disrupt the overall balance.
A power supply incident can take several forms.
The term "feeding problem" actually encompasses different behaviors. The cartridge can:
- remain partially in the charger ;
- start moving but not properly enter the room ;
- introduce oneself according to an unusual orientation ;
- prevent the bolt from fully completing its return.
These visually different symptoms may stem from different causes. It is therefore necessary to describe precisely what is happening rather than simply saying: "My weapon jams".
Precise vocabulary improves diagnosis
Saying that a weapon has "jammed" provides relatively little information. A professional will need to know:
- Where is the cartridge located? ;
- In what position is the cylinder head? ;
- if the incident is recurring ;
- With which charger? ;
- With what ammunition?
The more precise the observation, the more effective the diagnosis becomes. Understanding how the charger works helps the shooter to describe what they see without claiming to determine the definitive cause themselves.
Why can a cartridge point too low ?
Visually, some incidents give the impression that the front of the cartridge meets a lower area instead of naturally continuing towards the chamber. This can be related to different parameters:
- presentation ;
- lip control ;
- behavior of the battery.
However, it would be incorrect to automatically conclude that it is sufficient to modify a particular surface. The problem must be examined throughout the entire supply chain.
And why can it sometimes point too high ?
The reverse mechanism can also occur. A release or presentation different from what is expected can change the angle of the cartridge. Once again, the symptom alone does not allow one to determine the cause. The magazine is one hypothesis among several. Therefore, comparison with other examples becomes extremely useful.
The charger also influences the bolt stop.
On many pistols, when the last cartridge has been fired, the elevator indirectly participates in activating the slide stop. The slide then remains open. This function once again shows that the magazine does not merely feed the weapon. It also communicates the "empty" status to the mechanism. If this sequence becomes irregular, the condition of the magazine can therefore also be one of the elements to examine.
A bolt that does not stay open does not automatically indicate a bolt catch.
The shooter sees the bolt come forward after the last cartridge and immediately thinks of the bolt catch. However, the magazine follower usually plays a role in the sequence that should lift it. An unusual operation can therefore stem from several components. Conversely, a bolt catch problem does not automatically blame the magazine. The logic always remains the same: Observe the system before blaming a part..
The quality of manufacturing of a charger is fundamental.
The required tolerances seem modest, but several surfaces must remain consistent. A good charger should have:
- regular geometry ;
- sufficient resistance ;
- free movement of the elevator ;
- suitable spring pressure ;
- properly sized lips.
As is often the case in mechanics, it is not the visual complexity that defines the importance of a part. An object that appears extremely simple can require a great deal of precision to function properly.
A compatible charger is not necessarily equivalent.
The market sometimes offers several magazines that can physically fit into the same firearm. But simple dimensional compatibility does not necessarily guarantee exactly the same performance. Materials, spring, follower, and geometry can vary. For a firearm intended for regular use, the manufacturer's recommendations and products recognized as compatible with the model remain the most reasonable references. The goal is not just for the magazine to lock into the grip. It must function properly throughout the entire cycle.
The locking of the magazine in the weapon also counts.
Once inserted into the handle, the magazine must be held at the intended height. This relationship directly influences the position of the top cartridge relative to the bolt. The retention system is therefore also part of the feeding chain. A properly designed magazine but poorly positioned would no longer present the cartridges under exactly the intended conditions. Once again, this shows that feeding is an interaction between several components and not the isolated work of a single mechanism.
A difference of a few millimeters can change a lot of things.
In a handgun, the functional distances are short. The cartridge is located just below the breech. The chamber is situated a few centimeters further along. This gives the impression that the path is easy. But precisely because the distances are short, small differences in angle or height can quickly change the points of contact. Reliability therefore depends on a series of sufficiently precise geometries.
The best charger is often the one you never think about.
When it works perfectly, no one notices it. You insert it. You pull the trigger. The cartridges are fed successively. The bolt remains open at the end depending on the design of the weapon. Then the magazine is removed. This entire sequence seems obvious. Yet it relies on dozens of internal movements carried out correctly. Like the extractor and ejector studied previously, the magazine only becomes visible when an anomaly occurs.
Competitors generally get to know each individual copy.
A shooter who regularly uses several magazines often ends up knowing their individual behavior. Some are reserved for training. Others are kept in better condition for certain sporting uses. This approach is not an obsession. It simply stems from the fact that a magazine is an independent mechanical part with its own wear. Two units taken from the same package will not necessarily remain identical after years of different use.
Storage also has its importance.
Like any mechanical equipment, chargers must be stored under appropriate conditions, protected from damage, and in accordance with applicable regulations. The main goal is to avoid:
- unnecessary shocks ;
- corrosion ;
- significant contamination.
A charger that has been mishandled outside the range can obviously present problems during its next use. Reliability therefore begins even before it is introduced into the weapon.
When should a charger truly be suspected ?
Several clues may draw attention:
- repetitive incident with a single copy ;
- normal functioning with others ;
- problem always occurring at the same point in the stack ;
- visible damage ;
- unusual internal movement.
None of these elements alone constitutes a definitive diagnosis. But their combination makes the charger hypothesis much more credible. This is precisely the type of information that a gunsmith can use to speed up their analysis.
Why should you avoid modifying your own lips ?
Because they directly determine how the cartridge is held and released. A very slight modification can have significant consequences. Without reference dimensions, appropriate tools, and precise knowledge of the model, it is difficult to know whether one is actually fixing a problem or creating a new one. Understanding their role is therefore relevant. Arbitrarily modifying them is not. When a deformation or anomaly is suspected, the most reasonable solution remains inspection or replacement with a compliant part.
The same caution applies to the springs.
A worn or damaged spring may naturally require replacement. But this intervention must remain in accordance with the specifications suited to the charger. Arbitrarily choosing a different force in the hope of achieving "more reliability" is not a diagnostic method. Reliability comes from a proper balance, not from the maximum possible value.
Replacing can sometimes be more rational than repairing.
The magazine has an interesting feature: unlike many internal parts of the weapon, it is generally designed as a removable component. When a unit exhibits an obvious and recurring anomaly, comparing it to or replacing it with a compliant magazine can be a simple method to isolate the problem. This principle of controlled substitution is widely used in mechanical diagnostics: one element is changed and it is observed whether the phenomenon persists. It prevents multiple parameters from being modified simultaneously.
Do not change multiple elements at the same time.
If a weapon experiences a malfunction and you simultaneously change the magazine, ammunition, and several parts, you will no longer know which modification influenced the result. A good analysis is done by comparison. Same weapon. Same ammunition. Different magazine. Or vice versa. The goal is to gradually reduce the variables. This is much more informative than a series of changes made at random.
The loader recalls an essential rule of weapon mechanics.
A semi-automatic weapon is not a mere collection of independent parts. It is a chain. The cartridge is presented. The bolt retrieves it. It is guided into the chamber. The intended locking occurs. The shot is fired. Then extraction, ejection, and reloading begin again. An irregularity occurring at the very beginning of this chain can therefore produce a symptom several steps later. Understanding this chronology helps avoid condemning too quickly the visible part at the moment when the cycle stops.
Conclusion
Why is the magazine so often at the heart of feeding problems in a pistol? Because it is the starting point of each feeding cycle. Before the slide can push a cartridge into the chamber, that cartridge must already be at the correct height, properly oriented, and sufficiently controlled. This work mainly relies on four elements: body, spring, lifter, and lips. The body guides the magazine. The spring provides the energy necessary for its upward movement. The elevator transmits this push and supports the cartridges. The lips determine how the top cartridge is held and then released. If any of these parameters become irregular, the symptom often appears elsewhere: cartridge stoppage, incomplete feeding, bolt not fully returning to battery, or different behavior depending on the number of cartridges remaining. This explains why the magazine must be considered a true mechanism and not just a simple container. But this does not mean it is responsible for all malfunctions. Ammunition, the general condition of the weapon, magazine position, cycle speed, and other components can also play a role. The best approach remains comparative. If four magazines work perfectly and a fifth regularly causes the same problem, this information is particularly valuable. If all produce exactly the same incident, the analysis probably needs to be broadened. This method helps avoid two common mistakes: Immediately chamber a round or modify a magazine without having identified the cause. Lips and springs have dimensions and characteristics defined by the design. Their improvised modification can shift the problem or create a new one. A reliable magazine is ultimately a magazine that you forget about. It presents each cartridge with enough consistency for the entire cycle to seem obvious. And as is often the case in gunsmithing, it is when this small part ceases to be invisible that one discovers the true importance of its role.
FAQ
What is the main role of a pistol magazine ? It stores the cartridges but above all presents them successively to the breech under the conditions necessary for feeding.
What are the main parts of a charger ? The body, the lips, the lifter, the spring, and the sole.
What are the lips of the charger used for ? They hold and guide the upper cartridge until the bolt can retrieve it.
What is the purpose of the elevator ? It transmits the spring's thrust to the cartridge stack and helps position them.
Can the magazine spring cause feeding problems ? An irregular operation of the spring can disrupt the feeding of the cartridges, but the entire system must be considered before drawing a conclusion.
Why can a single charger cause incidents ? It may exhibit wear, deformation, clogging, or a mechanical difference absent in the other specimens.
Why do certain incidents only occur when the charger is fully charged ? The compression of the spring and the pressure exerted on the magazine are different when the magazine is fully loaded.
Why can the last cartridges behave differently ? The lifter and the spring are then in a different part of their travel.
Can a charger that falls to the ground be damaged ? Yes. The body, the lips, or the sole can be affected depending on the fall and the material.
Can a dirty charger disrupt the power supply ? Yes. Significant residues can increase friction and hinder the movement of the elevator.
Should the inside of a magazine be lubricated heavily ? No. You must follow the manufacturer's recommendations, as an excess of product can trap more dust or residues.
Why identify your chargers ? This allows us to determine whether the incidents occur regularly with the same unit.
Does a power issue always mean that the charger is defective ? No. The ammunition, the weapon, and several other factors can produce similar symptoms.
Are all compatible chargers equivalent ? Not necessarily. Materials, geometry, springs, and lifters can vary depending on the manufacturers.
Does a magazine influence the bolt stop ? On many pistols, the lifter is involved in the operation of the slide stop when the magazine becomes empty.
Can one modify their own lips to improve feeding ? A modification of their geometry can directly affect the operation and should be avoided without proper knowledge, references, and tools.
Does replacing the spring with a more powerful model always improve reliability ? No. The system was designed around a precise balance, and more strength is not automatically better.
How to determine if a charger is likely responsible ? Comparison with several specimens under the same conditions is one of the most useful indicators.
